DURAWALL - Do It Yourself !

Recommended Tools:

Post-Hole Shovel - String-line - Spirit Level - Tape Measure - Crow Bar

Method:

• Set out the post-holes by using your string-line.


• Measure post hole centres at 1520mm.


• Dig or bore holes to required depth.


• Starting at one end, place a post in the hole to the correct depth.

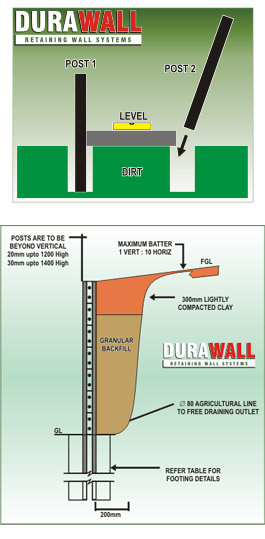

• Level in bottom sleeper and insert second post.


• Posts should be plumb laterally, but leaning back as per diagram.


• Continue until all bottom sleepers are level and well supported.


• Load up remaining sleepers.


• Concrete in posts.


• Wait five (5) days before backfilling.

Note:

1. Walls above 1000mm require Council Approval.

2. Technical data for walls 1200 and 1400 high available from DURAWALL.
